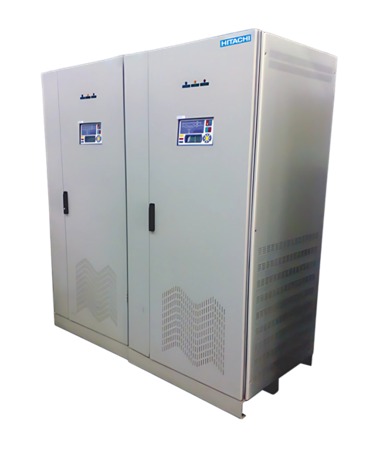

Stallion
Hitachi Hi-Rel offers Stallion Battery Charger with output voltage 24V DC to 220V DC and output current up to 1200A. Its Stallion Battery Charger is designed to charge the Batteries to supplies backup power for hours, days, or even weeks depending on the load and battery capacity. It is designed for compatibility with all types of batteries like VRLA, NiCS and Gel.
Its Stallion Series of Advanced Battery Chargers deploy Thyristor based technology and Digital Signal Processing Controls (DSP) to achieve the desired DC output. Power required is adjusted by using phase control technology actuated by the DSP based control card. The DSP based control system enables user-friendly settings via the keypad on the form of the panel.
KEY FEATURES
DSP based Digital Control
LCD Display and Keypad Interface
Comprehensive LED Mimic
Single of Parallel Redundant Battery Charger
Auto Temperature Compensated Battery Charger
Three Modes for Battery Charging
Auto Float / Boost
Manual Float / Boost
Timer based Boost
Independent Battery and Load Current Limit
User Friendly Component Layout for Easy Operation and Maintenance
Date and Time Stamp Event Recording – Last 250 Events Logged Non-Volatile Memory
Separate Current Limit for Battery Charging and Load Unit
Soft Start Inrush Current to Battery when unit is Switched On Charger Short Circuit and Overload Protection
Separate Battery Path Current Limiting ensures Lower Battery Charging Current than the Load Current to maintain Charging Current constantly at Required Levels
