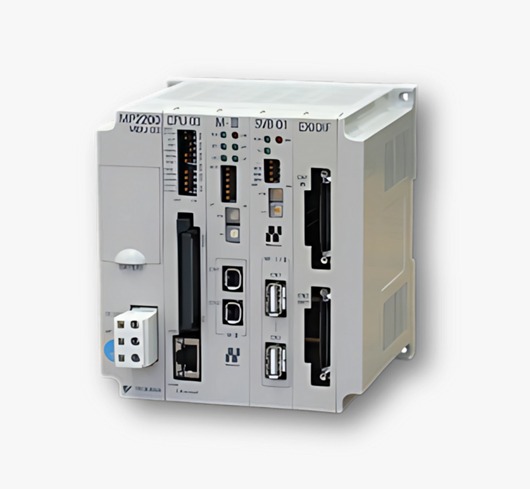

MP2000
The MP2000 Series Machine Controller has been developed to optimize control of machines. It has surpassed the top achievements of PLCs and user-developed controllers to offer ideal motion control. High speed processing and network communications are vital to maximizing the output of intricate systems. The high-speed CPU of the MP2000 Series reduces the execution time needed for commands. It is the ideal machine controller for large-scale systems requiring sophisticated multi-axis controls and reduction of tact time
KEY FEATURES
Synchronous control of up to 256 axes.
As many as 35 slots can be added for option modules.
Fastest transmission cycle: 125 s (4 stations).
Slots for optional modules allow the expansion of I/Os and network systems.
Program applications for the MP2000 series can be converted and used with the MP3000 series.
Board Type, Module type and Compact Type Machine Controller options available
Built-In Ethernet × 1 port: 100 Mbps
Backup/restore of project files, data logging, import/export of register data.
Basic motions, such as rapid traverse positioning, linear interpolation, and circular interpolation, can be easily programmed.
Switching between four control modes i.e. Synchronous Phase Control, Torque Control, Speed Control and Position Control.
MPE720 Ver. 7 engineering tool integrates the engineering environments for servo, inverter, and I/O devices into a single software package. This enables all-in-one engineering from setup to maintenance of drive units connected to an MP2000 series machine controller via the MECHATROLINK network.

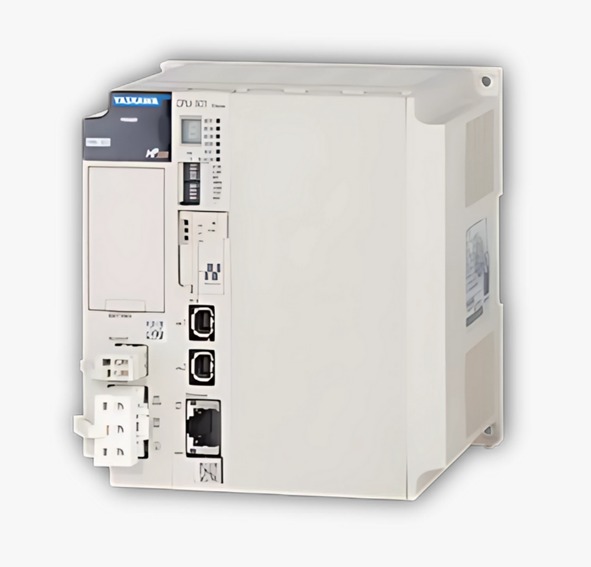

MP3000
The MP3300 Machine Controller makes it possible to combine the Base Unit and CPU modules to match the customer’s control scale and control panel size. Combination with the ∑-7 Series of AC Servo Drives realizes e-motional motion control the customer’s system. The MP3300 machine controller in the MP3000 series enables the industry’s fastest synchronous scanning. By using it in combination with the ∑-7 series of AC servo drives, our customers can make the best use of systems with motion control offering a whole new range of exciting possibilities.
KEY FEATURES
Double-precision real-number, 64-bit integer data for higher precision.
Expanded program capacity to up to 15MB.
Fastest transmission cycle: 125 s (4 stations).
Program applications for the MP2000 series can be converted and used with the MP3000 series.
Maximum number of controlled axes is 256 axes (when optional modules are used, or when racks are expanded)
Slot Expansion of 3 , 5 and up to 8 Racks
Built-In Ethernet × 1 port: 100 Mbps
Backup/restore of project files, data logging, import/export of register data
The MP3300 can control large-scale systems with 32 servo-drive axes for a maximum of 42 stations per circuit.
Switching between four control modes i.e. Synchronous Phase Control, Torque Control, Speed Control and Position Control.
MPE720 Ver. 7 engineering tool integrates the engineering environments for servo, inverter, and I/O devices into a single software package. This enables all-in-one engineering from setup to maintenance of drive units connected to an MP3000 series machine controller via the MECHATROLINK network.
