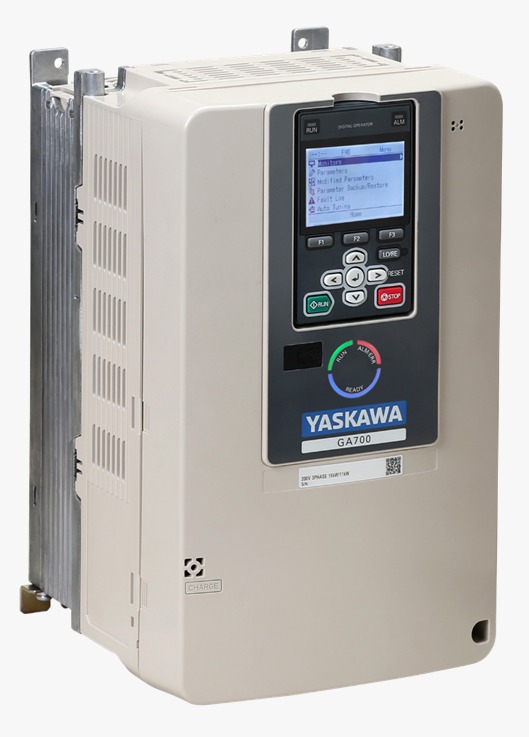

GA700 - Advanced Vector control & IoT Drive
The Yaskawa GA700 drive provides the ultimate combination of power, ease of use, flexibility, and performance. In addition to its exceptional torque production and precise control, you’ll enjoy effortless setup with GA700’s high-resolution display and connection to your favorite mobile device. Whether you need simple control, advanced network communications, or functional safety, look no further than GA700 for all your variable speed needs.
KEY FEATURES
One drive controlling any induction, permanent magnet or synchronous reluctance motor
Closed or open loop vector control for outstanding regulation and torque production.
Fast acting motor control functions provide near tripless operation.
Popular network connections provide robust control and monitoring with system controllers.
Embedded Auxiliary Control Power Input (24V) maximizes production time andefficiency by maintaining network communication while main power is removed.
Embedded Safe Torque Off minimizes downtime for applications requiring occasional intervention (SIL CL3, PLe, Category 3).
Integrated DC Reactor (30kW ND and above) improves power quality and compatibility.
Integrated 12 Pulse version provides a cost effective solution for low harmonics.
Integrated Brake Transistor (up to 90kW ND) for cost effective heavy braking.
Reduced set-up time with an intuitive keypad, navigation and start-up wizards
Keypad with 4 parameter backup function, real time clock, data logger and copy unit
High resolution multi-language display with Setup Wizards and Data-Logging.
Bluetooth and DriveWizardMobile for convenient and easy interaction.
Programming without main power through embedded USB port.
DriveWizard Desktop for comprehensive configuration and monitoring.
DriveWorks EZ (embedded function blocks) provides extra flexibility, otherwise accomplished in a separate controller.
Standard conformal coating helps resist contamination.
Made with RoHS compliant materials for environmental compliance.

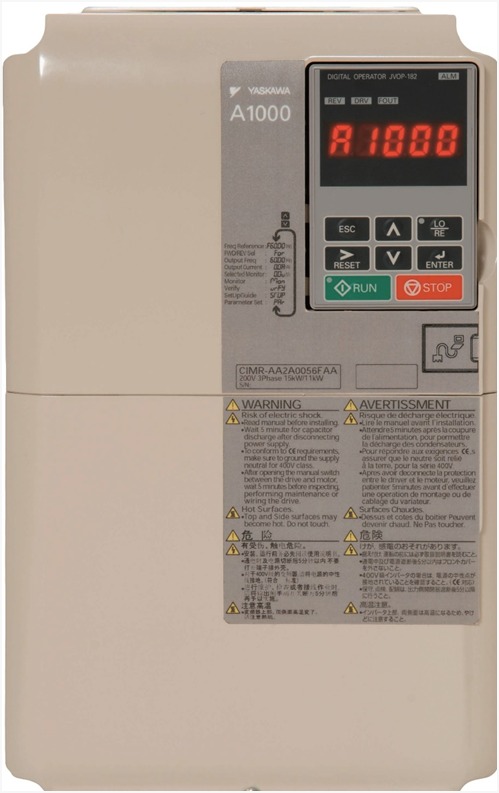

A1000 - High Performance Vector control Drives
The A1000 is a full featured drive, providing outstanding quality, performance, flexibility, and environmental friendliness through 560kW. Enjoy network communications, feedback, and expandable I/O to control anything from simple fans and pumps to complex machines. For new installations or retrofits, the A1000 provides a single robust solution, regardless of your application.
KEY FEATURES
Closed or open loop vector control for outstanding regulation, torque production, and position control capability.
Continuous Auto-tuning optimizes performance by compensating for changes in motor temperature.
High Frequency Injection enables high precision open loop control of Interior Permanent Magnet Motors.
Fast acting current and voltage limiters help achieve continuous drive operation during periods of excessive demand.
High Slip Braking reduces installation cost and the need for dynamic braking resistors
Communication options for all major industrial networks provides high speed control and monitoring, reducing installation cost.
DriveWizard computer software and Application Sets for easy configuration.
Auxiliary Control Power Unit maximizes production time and efficiency by maintaining network communication while main power is removed.
Embedded Safe Torque Off minimizes downtime for applications requiring occasional intervention (SIL CL2, PLd, Category 3).
Embedded function blocks, programmable with DriveWorks EZ, provide additional application flexibility and the opportunity to eliminate separate controllers.
USB Copy Unit and Keypad configuration storage provide speed and convenience for duplicate configuration of multiple drives.
Removable terminal board with configuration storage provides convenience of configuration backup.
Made with RoHS compliant materials.
Integrated DC Reactor (30kW ND and above) for input harmonic reduction.
Kinetic Energy Braking allows drive to remain in control during momentary power losses.

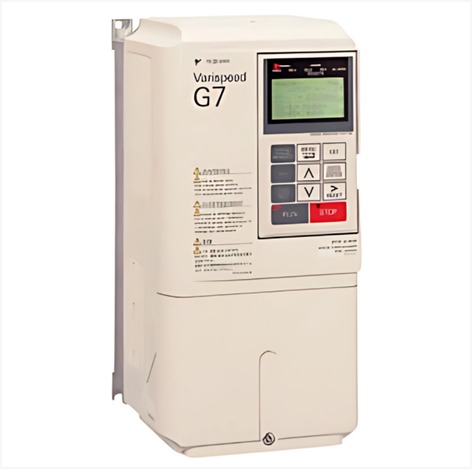

Varispeed G7 - 3 Level control method
This innovative drive utilizes 3 level control to offer the best solution for challenging installations. Yaskawa is the only manufacturer to offer a low voltage drive with this architecture. 3 level technology minimizes drive induced problems associated with long motor cables and premature motor bearing failures. In addition, overall electrical noise is greatly reduced, resulting in the most problem free installations. Not only does the Yaskawa G7 deliver this exclusive advantage, but it also provides high flexibility and excellent vector performance for control of speed, torque, and position, available in ratings through 300kW
KEY FEATURES
The First Product in the world which works on 3-Level Control Method
Accurate Torque control which protects the machine from sudden load fluctuations.
High speed search function save the recovery time during momentary Power loss.
Low Surge voltage, Low Electrical noise, Low Acoustic noise and Leakage current is greatly reduced Energy Saving control performance reduces the operational cost
LCD keypad display: 5 lines x 16 characters, backlit, 7 languages, copy function
Support Global Field bus Networks
Certified under UL/cUL and CE
Overload capacity: Heavy duty, 150% for 1 minute, 200% peak
Starting torque: 150% at frequency; 1.0Hz (V/f), 0.5Hz (open loop vector), 0.0Hz (closed loop vector)
Output frequency: 0.01 to 400 Hz
Output frequency resolution: 0.001 Hz
Speed regulation: 1.0% (V/f), 0.2% (open loop vector), 0.01% (closed loop vector)
Speed reference resolution: 0.01 Hz with digital reference, 0.03 Hz with analog reference, 0.01 Hz with network reference
Speed/Torque Control
Zero-servo mode
Adjustable accel/decel: 0.01 to 6000 seconds
S-Curve: 0.00 to 2.50 seconds, adjustable for each corner
Stall prevention: Accel / decel / running
Power loss ride-thru: Auto-restart or inertia ride-thru
Can be utilized with 12 pulse system
