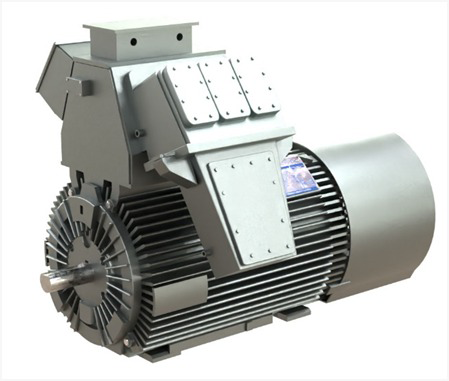

HV600
High Voltage TEFC Flowpak motors are part of an integrated range of induction machines, manufactured in a modern production facility. Flowpak is a range of totally enclosed fan-cooled cage induction motors available horizontally or vertically mounted for supply voltages up to 6.6 kV, outputs up to 800 kW. Flowpak range has a frame size with shaft center heights 280, 315, 355, 400, 450 & 500 mm. Standard designs cover 2 to 10 pole speeds, and all sizes of speeds are available with grease lubricated bearings.
KEY FEATURES
High efficiency – upto 96%
Low noise level (MSPL) – upto 85 dB (A) at 1 mt. distance with silence arrangements.
3. Safe programming without main three-phase power
High torque – 80% Voltage Starting on load “square low” drives.
High flexibility – a detailed study of market requirements.
Low Cost – Internationally Competitive.
Specifications
Frame: IEC 280 to IEC 560
Power Rating: upto 1.5 MW
Voltage: 3.3KV / 6.6KV / 11KV
Frequency: 50Hz +- 5%
Pole: 2 to 14
Applications
Pump, Compressor Drive, Fan, blower, Conveyor & dredging application.

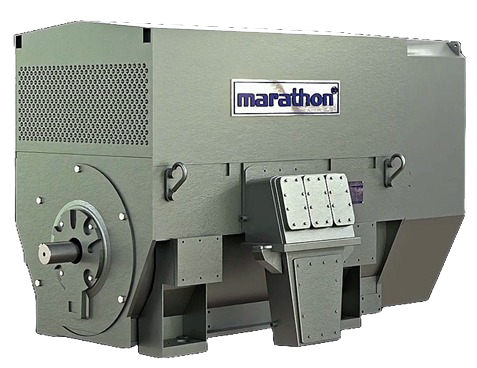

CACA Motors
With over 50 years of engineering expertise and one of India’s most advanced motor manufacturing setups, Marathon Electric presents the UNIPAK II CACA (TEAAC) High Voltage AC Induction Motors — tailored for heavy-duty industrial applications and performance that stands the test of time.
KEY FEATURES
Power Range: Up to 4000 kW
Robust Design Life: Designed for 20 years at 1000 starts/year
Built for Demanding Applications: Low vibration (IS:12075), low noise (IS:12065)
Global Compliance: Meets IEC 34 & other international standards
High Efficiency & Power Factor: Lower energy cost, quicker ROI
Maintenance-Friendly: Factory-set air gaps, low maintenance bearings
IP55 Protection: Superior safety in harsh environments
Variable Speed Compatible
Specifications
Voltage: Up to 11kV | 50/60Hz
Cooling Type: CACA (IC 0161), CACW (IC 8A1W7), IC01 (open ventilated)
Mounting: Horizontal Foot / Vertical
Frame Size: 315 mm to 710 mm shaft center height
Insulation Class: F Class with RESIVAC VPI system
Bearings: Rolling/Plain | Minimum 40,000 hours bearing life (L10h)
Speed Options: All poles from 2 to 14, VSD compatible
Shaft Options: Parallel, tapered, or double-ended as per requirement
International equivalents: VDE (Germany), CEI (Italy), NEN (Netherlands), etc.
Applications
Cement & Steel Plants
Oil & Gas
Power Generation (Captive Plants)Power Generation (Captive Plants)
HVAC & Large Ventilation Systems
Marine & Offshore
Crushers, Fans, Blowers, Mills & Compressors

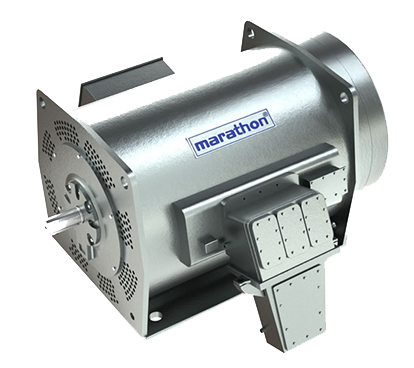

TETV Motors
Introducing the TEEPAK TETV Motors High Voltage Induction Motors – robustly constructed with steel frames, these motors ensure durability and reliability. They feature a uniform internal cooling circuit for efficient heat dissipation, allowing them to perform consistently even in demanding conditions. Smaller ratings benefit from axial cooling, while larger ratings utilize both radial and axial ventilation for optimal cooling. The motors adhere to basic mounting dimensions as per industry standards, making installation easy and seamless. TEEPAK TETV Motors are designed to enhance productivity and meet the highest industry standards. Trust in their exceptional construction, uniform cooling circuit, and versatile ventilation options to elevate your industrial operations.
KEY FEATURES
Class ‘F’ insulation system, both Resin rich & Resin poor (VPI) varieties available.
Rotors are dynamically balanced.
Rotor bars are brazed with end rings by One Shot Brazing process.
Global Compliance: Meets IEC 34 & other international standards
High Efficiency & Power Factor: Lower energy cost, quicker ROI
Maintenance-Friendly: Factory-set air gaps, low maintenance bearings
Environmentally friendly motors to meet all Drives
Fault tested Phase Segregated Terminal box.
RTD, BTD, Dial type Temperature indicator available
Separate Terminal Box available for Neutral point, RTD, and BTD termination purpose.
Provision for Magnetic Slot Wedge to improve Efficiency, Power Factor and improve Electromagnetic noise.
Provision for special Epoxy paint system.
Specifications
Frame: IEC 400 TO IEC 1000
Power Rating: upto 4 MW
Voltage: 3.3KV / 6.6KV
Frequency: 50Hz +- 5%
Pole: 2 to 14
Degree of Protection: IP 55
Applications
Pump, Compressor Drive, Fan, Blowers, Conveyor, paper plant, Crushers, Mills etc.

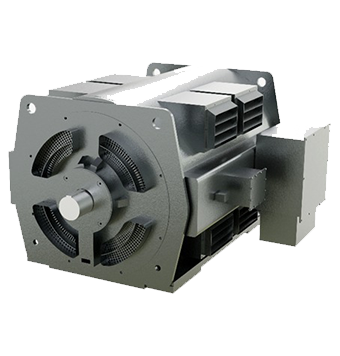

SPDP Motors
RW/CW SPDP Low voltage slipring induction motors are designed for heavy duty use with a driven machine imposing overloads and severe mechanical shocks and vibrations. Because of optimum utilization of materials, with improved ventilation techniques the motors are 10 – 15% lighter in weight and yet more rugged because of their inherent special construction. Because of the high Pull-Out Torque and inherent thermal margin kept for high slip operation (with suitable external resistance), these motors are ideally suited for rerolling mills and cane cutter/cane crusher/cane leveler/cane fiberize applications pertaining to sugar industries.
KEY FEATURES
Design for Heavy duty application.
Accommodate severe mechanical shocks & vibration.
Improved ventilation technique.
High Pullout Torque.
Suitable for demanding applications.
Inherent thermal margin leads to High Performance.
Compliance with IEC Class IV duty.
Easy access to brush gear sliprings.
Specifications
RW Frame Sizes: RW89 to RW 168
CW Frame Sizes: IEC 450 TO IEC 710
Power Rating: 90kW to 2000 kW
Power Supply: AC 3 Phase , 415V+/- 10%, 50 Hz +/- 5%
Pole: 6 to 12
Protection: IP21, IP23 (IS 4691)
Insulation Class: Class F with temperature rise limited to class B
Ambient Temperature: 45°C
Applications
Rolling mills and cane cutter/cane crusher/cane leveler/cane fiberizer applications

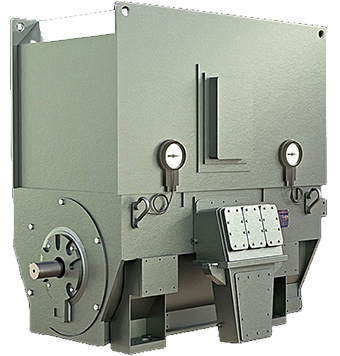

CACW Motors
One of India’s most modern motor factories, incorporating extensive CAD facilities with over 50 years of experience in the design and application of induction motors, enables Marathon to offer the benefits of proven solutions.
KEY FEATURES
Marathon has over 2500 MW installed world-wide.
Highest available efficiency – rapid payback.
High power factor – low power cost.
Resivac VPI insulation system for total winding reliability
Highest quality – lowest maintenance costs.
Low Noise Level – better performance than IS:12065
Low vibration level – conforms to IS:12075.
Compliance with National and International Standards
Variable speed drive compatibility.
Specifications
Frame: IEC 315 to IEC 710
Power Rating: upto 5 MW
Voltage: 3.3KV / 6.6KV / 11KV
Frequency: 50Hz +- 5%
Pole: 2 to 14
Air-cooled CACA IC 0161, Water-cooled CACW IC 8A1W7
Applications
Air Compressor in power plant/ steel plant, Fan & blower motors, Conveyor motors, paper plant, crushers motors.
