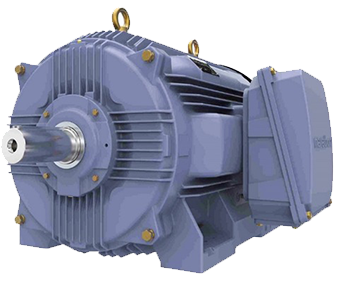

IE2 Efficiency Motors
TerraMAX SCA Series motors are IE2 efficient Totally Enclosed Fan Cooled (TEFC) cast iron motors built on the TerraMAX low voltage motor platform. The SCA series motors inherit the state-of-the-art premium features of the TerraMAX motor platform family. The rugged construction of SCA motors aims to meet the general industry requirement for every tough and demanding application.
KEY FEATURES
Confirms to IEC 60034
Bi-directional fan
Suitable for variable torque duty (10:1)
Specifications
Frame Sizes: IEC®* 80 – IEC 355
Power Rating: 0.37 kW to 375 kW
Power Supply: AC 3 Phase 415V, 50Hz
Pole: 2 to 8
Protection: IP55 (IS 4691)
Insulation Class: Class F with temperature rise limited to class B
Ambient 50°C
All standard mountings B3, B5, B35, V1 ( B14 and B34 for IEC 80-132)
Specifications
Pumps, Machine tools, Crane & hoist, Agitator, Fans, Material handling, Textile Machinery, Packing Equipment, Compressors, Plastic extruder, Stone Processing Machinery, Oil Expeller

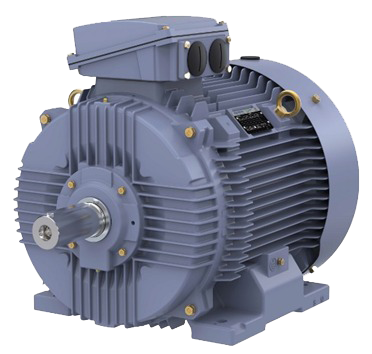

IE3 Efficiency Motors
TCA series motors, built on the global low voltage TerraMAX motor platform, are IE3 efficiency totally enclosed fan cooled motors suitable for general industry applications. The TCA series motors inherit the state of the art premium features of TerraMAX motor platform, while delivering energy savings for the industry. The rugged construction of the TCA series motors meets the industry requirement for all tough and demanding applications.
KEY FEATURES
Confirms to IEC 60034
Suitable for Variable Torque Duty (10:1)
Captive screws for the Terminal Box cover
Specifications
Frame Sizes: IEC 80 – IEC 355
Power Rating: 0.37 kW to 375 kW
Power Supply: AC 3 Phase 415V, 50Hz
Pole: 2 to 8
Protection: IP55 (IS 4691)
Insulation Class: Class F with temperature rise limited to class B
Ambient 50°C
Applications
Pumps, Machine tools, Crane & hoist, Agitator, Fans, Material handling, Textile Machinery, Packing Equipment, Compressors, Plastic extruder, Stone Processing, Machinery, Oil Expeller.

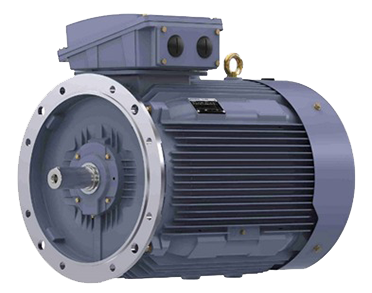

IE4 Efficiency Motors
The TerraMAX QCA Series motors are IE4 efficient, totally enclosed fan cooled cast iron motors built on the TerraMAX low voltage global platform. QCA Series motors offer premium features for general industry applications while complying with industry and regulatory standards for performance and overall form, fit and function. The motors have robust construction based on careful design elements, accurate machining parameters, which allow the motors to meet the demanding requirement of various industrial applications, while offering super-premium efficiency to the market.
KEY FEATURES
Suitable for Variable Torque Duty (10:1)
Class F insulation and Class B rise
Bi-directional fan
Confirms to IEC 60034
Captive screws for Terminal Box cover
Specifications
Frame Sizes: IEC 80 – IEC 355
Power Rating: 0.37 kW to 355 kW
Power Supply: AC 3 Phase 415V, 50Hz
Pole: 2 to 6
Protection: IP55 (IS 4691)
Insulation Class: Class F with temperature rise limited to class B
Mounting: All standard mountings B3, B5, B35, V1 (B14 and B34 for IEC 80-132)
Ambient 40°C
Applications
Crane & hoist, Material Handling, Machine tools, Pumps, Fans, Compressors, Conveyors, Packing equipment
